PCCB Clearance Explained — 4 Things Every Porsche Owner Must Know

Date July 2, 2026
Category
Uncategorized

The Detail That Separates a Safe Porsche Build from a Dangerous One

PCCB clearance is the single most important fitment detail for any Porsche owner considering aftermarket wheels — and the one most frequently overlooked until it is too late.

Porsche Ceramic Composite Brakes are one of the most technically advanced brake systems fitted to any production road car. They are also one of the most physically imposing — significantly larger than standard iron calipers, extending further into the wheel barrel space, and creating a clearance requirement that eliminates most aftermarket wheel options before the conversation even begins.

Get PCCB clearance right and your build is correct, safe, and ready to perform at the level the Porsche platform demands. Get it wrong and the consequences are immediate, serious, and entirely avoidable. At Elite BBS Wheels, PCCB clearance is confirmed on every Porsche build we undertake — before a single component is ordered. This post explains exactly what that means and why it matters

.

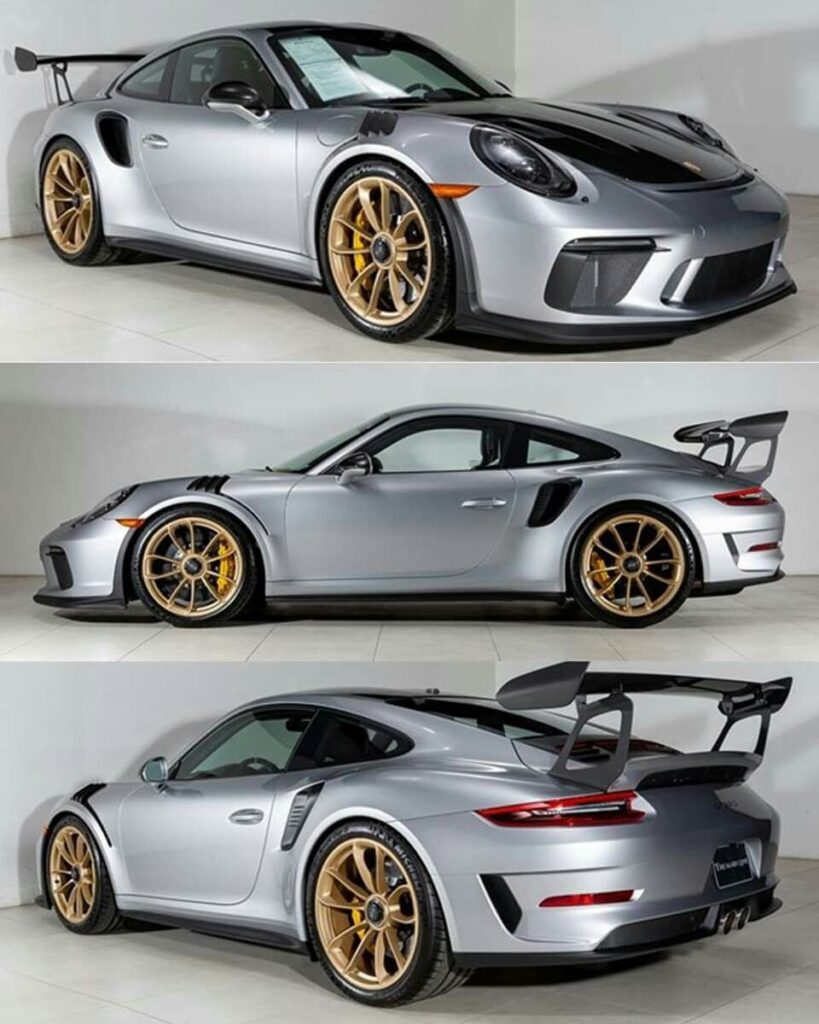

PCCB Clearance Porsche Wheel Fitment Guide — Elite BBS Wheels

Why PCCB Clearance Catches So Many Porsche Owners Off Guard

The PCCB clearance problem is more common than it should be — and the reason it catches so many Porsche owners off guard is straightforward.

Most wheel fitment databases, most wheel sellers, and most online compatibility guides are built around standard iron caliper dimensions. When a wheel is listed as compatible with a specific Porsche platform, that compatibility is almost always assessed against the iron caliper geometry — not the PCCB caliper geometry. The two are not interchangeable specifications.

PCCB calipers are substantially larger than standard iron calipers. The ceramic composite rotor requires a caliper with different mounting geometry, different piston configuration, and different overall dimensions to deliver the clamping force the ceramic surface demands. The result is a caliper that extends significantly further into the wheel barrel space than a standard iron caliper on the same platform.

This means a wheel confirmed to clear standard iron brakes may have zero clearance — or negative clearance — against a PCCB caliper on the identical platform. Same car. Same bolt pattern. Same hub bore. Completely different caliper geometry. And completely different clearance requirements.

The consequence of insufficient PCCB clearance is not a slow-developing fitment issue. It is immediate wheel-to-caliper contact at driving speeds — a safety event that can damage the wheel, damage the brake caliper, and compromise braking performance at the exact moment it is needed most.

PCCB Clearance Explained Platform by Platform

What Are PCCBs and Why Do They Create Clearance Challenges?

PCCBs use rotors made from carbon fibre reinforced ceramic composite — lighter, more heat-resistant, and more fade-resistant than cast iron. The caliper required to work with this rotor material is a monoblock aluminum unit — a single machined body that presents a larger, more continuous profile into the wheel barrel space than a two-piece caliper of equivalent braking capacity. This monoblock geometry is the source of the clearance challenge — and it must be specifically verified for every wheel specification on every PCCB-equipped Porsche platform.

Porsche 991 GT3-RS — PCCBs Are Standard, Not Optional

The 991 GT3-RS carries PCCBs as standard factory equipment. There is no non-PCCB 991 GT3-RS. Every aftermarket wheel for this car must therefore be assessed for PCCB clearance as a matter of absolute course — not as an optional verification step.

Our BBS E07 build for the 991 GT3-RS carries an honest and precise fitment disclosure — these wheels will not clear 991 PCCBs. This is not a build limitation. It is an accurate fitment specification. 991 GT3-RS owners with PCCBs require a different build — and we provide that specification clearly and immediately on request.

Our BBS E88 build for the 991 GT3-RS is confirmed to clear PCCBs — same Center Lock configuration, same 19×9.5″ ET41 front and 19×12.5″ ET41 rear dimensions, PCCB clearance built into the specification from the ground up.

.

Porsche 997 GT3 — PCCB Clearance Confirmed on Specific Builds

The 997 GT3 is available with PCCBs as a factory option — and the 997 PCCB caliper geometry differs from the 991 generation. Our BBS E89 build has been professionally machined to clear PCCBs on both the 991 and 997 GT3 platforms — a precision engineering intervention that removes material from specific barrel areas to achieve clearance without compromising structural integrity. Face part numbers 0289046 front and 0289047 rear confirm full BBS component authenticity throughout this build.

Porsche 992 GT3 — CCB Clearance Confirmed

The 992 GT3 uses Carbon Ceramic Brakes — the same technology as PCCBs under a different naming convention. Our BBS RT-88 build for the 992 GT3 — BBS Germany forged faces, BBS LM program barrels from Japan, OEM titanium bolts — is confirmed to clear CCBs. This confirmation is built into the specification. Not assumed. Not approximated. Confirmed.

The Porsche Motorsport Bolt — When You Need It and Why

On certain 991 GT3 and GT3-RS Center Lock builds, a Porsche Motorsport bolt — part number 999-073-530-01 — is required to clear the inner barrels on the rear wheels. This specific fastener provides a different profile that increases clearance between the retention hardware and the barrel inner face. At Elite BBS Wheels we specify the Motorsport bolt requirement clearly on every build where it applies — because discovering the need for it after the wheels are fitted is not acceptable.

PCCB Clearance Across Elite BBS Wheels Porsche Builds

 Four Builds. Four Honest PCCB Specifications.

BBS E07 | 991 GT3-RS | 19×9.5″ / 19×12.5″ ET41 | Will NOT Clear 991 PCCBs
Confirmed fitment for iron brake GT3-RS variants. Honest disclosure for PCCB cars. Alternative specification available on request.

BBS E88 | 991 GT3-RS | 19×9.5″ / 19×12.5″ ET41 | PCCB Clearance Confirmed
PCCB-cleared GT3-RS specification. Same dimensions and finish as the E07 build. Built for owners who run PCCBs and refuse to compromise on visual character or brake safety.

BBS E89 | 991 GT3 / 997 GT3 | 20×9″ / 20×12″ | PCCB Clearance Confirmed — Machined
Precision-machined PCCB clearance on both 991 and 997 platforms. Engineering intervention applied where visual compromise would otherwise be the only alternative.

BBS RT-88 | 992 GT3 | 20×9.5″ / 21×12″ | CCB Clearance Confirmed
The road-legal race wheel for the 992 GT3. Carbon ceramic brake clearance confirmed. Every component genuine BBS. Every specification verified before the build begins.

PCCB Clearance Is Not Optional Knowledge for Porsche Owners

PCCB clearance cannot be assumed, approximated, or discovered after the wheels are fitted.

It is a specific, measurable, verifiable specification that must be confirmed for every aftermarket wheel on every PCCB-equipped Porsche — before the order is placed, before the build starts, and before the wheel goes anywhere near the car. The consequences of getting it wrong are immediate, serious, and entirely self-inflicted.

At Elite BBS Wheels, PCCB clearance is confirmed on every Porsche build we undertake. We specify it clearly — including the builds where clearance is not achieved — because honest disclosure of a fitment limitation is more valuable than a sale made on incomplete information.

Build Your PCCB-Equipped Porsche the Right Way

Planning a Wheel Build for a PCCB-Equipped Porsche? Talk to Elite BBS Wheels First.

At Elite BBS Wheels we have built BBS wheel sets for PCCB-equipped Porsche platforms across the 997, 991, and 992 generations. On every build PCCB clearance is confirmed before a single component is ordered.

Visit elitebbswheels.com or contact us privately today — tell us your Porsche platform, your brake specification, and your wheel vision. We will confirm the clearance before we build.
